Blagdon B15 PTFE Non-Metallic Pump

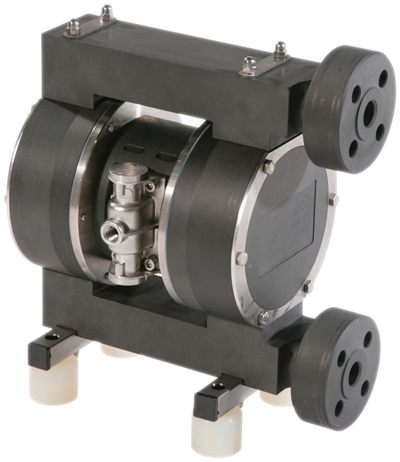

Blagdon B15 PTFE Non-Metallic AODD Pump
The Blagdon B15 PTFE Non-Metallic air-operated double diaphragm (AODD) pump is designed for demanding chemical-transfer applications where strong chemical resistance and non-metallic wetted construction are required.
Available in virgin PTFE and conductive PTFE configurations, the B15 provides maximum delivery up to 48 litres per minute (13 gal/min) and operating pressure up to 7 bar (102 psi). Its compact construction makes it suitable for controlled transfer of aggressive and corrosive process fluids.
The pump uses a proven pneumatic air-valve system and can handle particles up to 2 mm. Conductive PTFE X15 configurations are available for applicable ATEX hazardous-area installations.
Key Features & Benefits
- Maximum delivery up to 48 L/min (13 gal/min)
- Maximum working pressure up to 7 bar (102 psi)
- Virgin PTFE and conductive PTFE configurations available
- PTFE wetted construction for demanding chemical-transfer duties
- Handles solid particles up to 2 mm (0.08″)
- Simple construction designed for straightforward maintenance
- Reliable pneumatic air-valve system
- Wall or surface mounting options
- Exhaust-air silencer supplied as standard
- Conductive PTFE X15 configuration available for applicable ATEX installations
PTFE Configuration Options
| Wetted Construction | Virgin PTFE or Conductive PTFE |
| Valve Seats | PTFE |
| Valve Balls | PTFE |
| Diaphragm | PTFE, with selected high-temperature PTFE / FKM configurations depending on model code |
| ATEX Option | X15 Conductive PTFE configuration |
Chemical compatibility should always be confirmed against the actual fluid, concentration, operating temperature and process conditions before final pump selection.
Typical Applications
- Corrosive chemical transfer
- Acid and alkali transfer
- Chemical dosing and batching
- Specialty chemical processing
- Semiconductor chemical handling
- Petrochemical process duties
- Applications requiring PTFE wetted construction
- Hazardous-area chemical transfer using the correct conductive ATEX configuration
Virgin PTFE vs Conductive PTFE
Virgin PTFE: Provides highly inert non-metallic wetted construction for a wide range of compatible aggressive chemicals and corrosive process fluids.
Conductive PTFE: Provides PTFE chemical resistance together with conductive properties required for selected hazardous-area applications. Blagdon X15 ATEX configurations apply to conductive PTFE pumps.
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Delivery | 48 L/min (13 gal/min) |
| Maximum Working Pressure | 7 bar (102 psi) |
| Maximum Solid Particle Size | 2 mm (0.08″) |
| Air Inlet | 1/4″ BSP(F) / NPT |
| Temperature Limits | Determined by elastomer / diaphragm configuration |
| Dry Suction Lift | 4.6 m (15.1 ft) |
| Wet Suction Lift | 6.1 m (20 ft) |
| Fluid Inlet / Outlet | 1/2″ BSP / NPT |
| Installation | Wall or surface mounted |
| Included Accessory | Exhaust-air silencer |
| Shipping Weight – Virgin PTFE | 16 kg (35.3 lb) |
| Shipping Weight – Conductive PTFE | 16 kg (35.3 lb) |
| Shipping Dimensions | 320 × 200 × 340 mm (12.6″ × 7.9″ × 13.4″) |
Published performance values are based on manufacturer test conditions. Actual pump performance may vary depending on air supply, suction conditions, fluid properties and selected pump configuration.
Need Help Selecting the Blagdon B15 PTFE Pump?
Not sure whether virgin PTFE or conductive PTFE is suitable for your application?
ABS Engineering can help review your required flow, fluid properties, chemical compatibility,
temperature, solids size and hazardous-area requirements.
