B25 PTFE Non-Metallic Pump

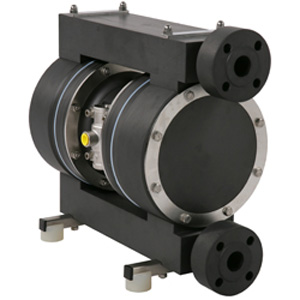

Blagdon B25 PTFE Non-Metallic AODD Pump
The Blagdon B25 PTFE Non-Metallic air-operated double diaphragm (AODD) pump is designed for demanding chemical-transfer applications where highly corrosion-resistant PTFE wetted construction is required.
With maximum delivery up to 136 litres per minute (36 gal/min) and working pressure up to 7 bar (102 psi), the B25 PTFE provides reliable fluid transfer for aggressive chemicals and compatible process fluids while handling suspended particles up to 3 mm.
Virgin PTFE and conductive PTFE configurations are available. For hazardous-area applications, the X25 ATEX configuration applies specifically to conductive PTFE construction.
Key Features & Benefits
- Maximum delivery up to 136 L/min (36 gal/min)
- Maximum working pressure up to 7 bar (102 psi)
- Virgin PTFE and conductive PTFE configurations available
- PTFE wetted construction for demanding chemical-transfer applications
- Handles solid particles up to 3 mm (0.12″)
- Self-priming air-operated diaphragm-pump operation
- Strong and robust non-metallic construction
- Reliable pneumatic air-valve system
- Ball or weighted-ball valve configurations depending on pump specification
- 1″ BSP or ANSI #150 flanged fluid connections
- Wall or surface mounting capability
- Exhaust-air silencer supplied as standard
- X25 ATEX configuration available for conductive PTFE models
PTFE Configuration Options
| Virgin PTFE | Chemically inert PTFE wetted construction for a wide range of compatible aggressive and corrosive process fluids. |
| Conductive PTFE | Conductive PTFE construction for selected applications where static-charge control and hazardous-area requirements must be considered. |
| Valve Seats | PTFE |
| Valve Balls | PTFE |
| Diaphragm Options | PTFE or selected PTFE / Viton high-temperature configuration |
| ATEX Option | X25 Conductive PTFE configuration |
Final pump configuration should be confirmed against the actual process fluid, chemical concentration, operating temperature and hazardous-area requirements.
Typical Applications
- Aggressive chemical transfer
- Corrosive fluid handling
- Acid and alkali transfer
- Chemical dosing and batching
- Specialty chemical processing
- Semiconductor chemical handling
- Petrochemical process transfer
- Tank and container transfer
- Applications requiring PTFE wetted construction
- Applicable hazardous-area duties using the correct conductive PTFE X25 configuration
Virgin PTFE vs Conductive PTFE
Virgin PTFE: Provides highly inert wetted construction for compatible aggressive chemicals where excellent chemical resistance is required.
Conductive PTFE: Combines PTFE chemical resistance with conductive properties for selected applications where electrostatic control is required.
For the Blagdon B25 PTFE range, X25 ATEX-approved versions are applicable only to conductive PTFE pumps.
ATEX Configuration
Blagdon X25 conductive PTFE models are available for applicable hazardous-area installations. Correct installation, bonding and grounding requirements must be followed according to the manufacturer’s instructions and applicable site standards.
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Delivery | 136 L/min (36 gal/min) |
| Maximum Working Pressure | 7 bar (102 psi) |
| Maximum Solid Particle Size | 3 mm (0.12″) |
| Air Inlet | 3/8″ BSP(F) / NPT |
| Temperature Limits | Determined by selected diaphragm / elastomer configuration |
| Dry Suction Lift | 6.1 m (20 ft) |
| Wet Suction Lift | 7.6 m (24.9 ft) |
| Fluid Inlet / Outlet | 1″ BSP / ANSI #150 Flange |
| Installation | Wall or surface mounted |
| Included Accessory | Exhaust-air silencer |
| Shipping Weight – Conductive PTFE | 40 kg (88.2 lb) |
| Shipping Weight – Virgin PTFE | 37 kg (81.6 lb) |
| Shipping Dimensions | 500 × 300 × 450 mm (19.7″ × 11.8″ × 17.7″) |
Published performance values are based on manufacturer test conditions. Actual pump performance may vary according to air supply, suction conditions, fluid properties and selected pump configuration.
