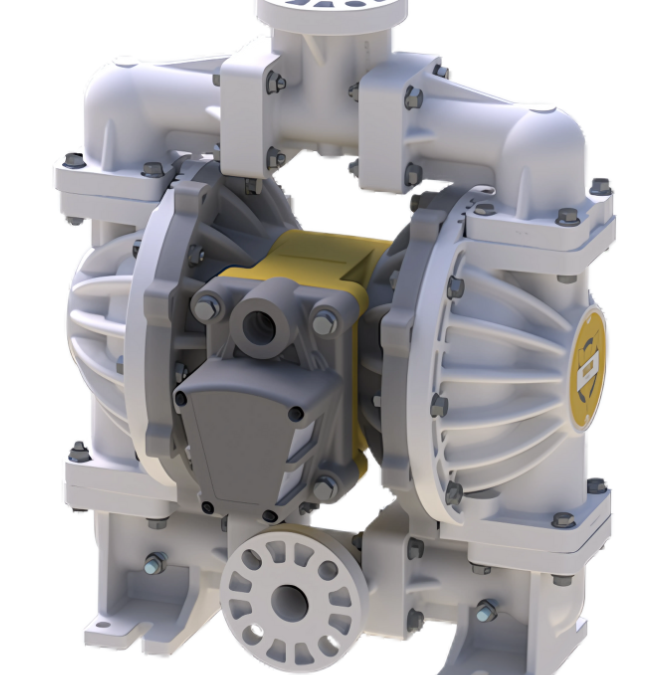

The Versa-Matic Valor 1″ (25 mm) air-operated double diaphragm (AODD) pump is designed for high-performance industrial fluid transfer with a modular construction focused on easier maintenance, flexible installation and efficient operation.
With an adjustable flow rate up to 63 gpm (238 lpm), the Valor provides high-capacity performance in a compact 1″ pump. Its integrated air-valve and pilot-valve arrangement is designed to simplify air-side servicing and help reduce maintenance downtime.
Polypropylene, PVDF and conductive polypropylene configurations are available for different chemical and industrial applications. Flexible center-port, end-port and dual-port arrangements allow the pump to be configured for different piping layouts and replacement requirements.
Key Features & Benefits
- Maximum flow rate up to 63 gpm (238 lpm)
- Capable of operating up to 125 psi
- Integrated air valve and pilot valve for easier servicing
- Modular design helps reduce maintenance complexity
- Interchangeable components help simplify spare-parts inventory
- End-port, center-port and dual-port configurations available
- Repositionable feet support different installation footprints
- Polypropylene and PVDF material configurations available
- Conductive polypropylene configurations available for applicable ATEX installations
- Maximum published noise level of 84 dB(A)
Flexible Modular Design
The Valor platform is designed to make installation and maintenance more flexible. Depending on the required configuration, the pump can be arranged with end porting, center porting or dual porting, while the feet can be repositioned to suit selected existing installation footprints.
Its modular air-side design also provides easier access to the main air valve and pilot valve, helping maintenance teams reduce service time and simplify routine pump repair.
Materials & Configuration Options
| Wetted Construction | Polypropylene, PVDF or Conductive Polypropylene depending on configuration |
| Fluid Porting | End porting, center porting and selected dual-port arrangements |
| Mounting | Repositionable mounting feet |
| Air-Side Design | Integrated main air valve and pilot valve |
| Hazardous Area Option | Conductive polypropylene configurations with ATEX options available |
Final material and diaphragm selection should be confirmed against the process fluid, chemical concentration, operating temperature, solids characteristics and site requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Flow Rate | 63 gpm (238 lpm) |
| Maximum Operating Pressure | 125 psi |
| Suction Port | 1″ ANSI / DIN Flange |
| Discharge Port | 1″ ANSI / DIN Flange |
| Air Inlet | 3/4″ NPT |
| Air Exhaust | 1″ NPT |
| Dry Suction Lift | 19 ft (5.8 m) |
| Wet Suction Lift | 31 ft (9.5 m) |
| Maximum Solid Size | 0.25″ (6 mm) |
| Maximum Noise Level | 84 dB(A) |
| Shipping Weight – Polypropylene | 25 lb (11.3 kg) |
| Shipping Weight – PVDF | 42 lb (19 kg) |
| Shipping Weight – Conductive Polypropylene | 28 lb (12.7 kg) |
Published performance values are based on manufacturer test conditions. Actual pump performance may vary according to air pressure, diaphragm configuration, suction conditions, fluid properties and installation conditions.
Typical Applications
- Chemical transfer and dosing
- Corrosive fluid transfer
- Solvent and compatible chemical handling
- General industrial fluid transfer
- OEM equipment and process skids
- Tank transfer and unloading
- Applications requiring frequent pump servicing
- Installations where flexible porting arrangements are required
- Applicable hazardous-area duties using the correct conductive ATEX configuration
Designed for Easier Maintenance
The Valor air-side design combines the main air valve and pilot valve into an accessible modular arrangement. Wet-side hardware has also been standardized to help simplify servicing, component handling and pump reassembly.
ATEX Options
Conductive polypropylene Valor configurations are available with ATEX options for applicable hazardous-area installations. Correct grounding, bonding and installation requirements must be followed according to the manufacturer’s instructions and applicable site standards.
