Sandpiper SPB20 Metallic and Non-Metallic AODD Pump (Heavy Duty)
DescriptionFeaturesSpecificationsDocumentation

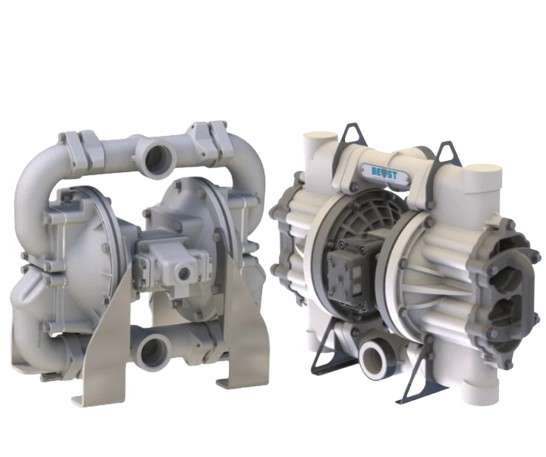

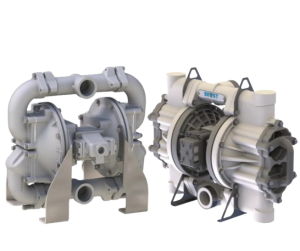

Sandpiper Metallic & Non-Metallic AODD Pump, Heavy Duty AODD Pump, the SPB20

Sandpiper’s AODD Pump, the SPB20 comes in both metallic and non-metallic options for its materials of construction.

The pump is trusted and proven to handle abrasive, corrosive and solids-laden fluids with efficiency and accuracy. The versatility of the pump makes it an ideal choice for applications that require these capabilities.

The pumps feature thick, robust wetted chambers for enhanced resistance to abrasion.

The pumps are available with top-suction or bottom discharge for easy passage of settling solids.

The Sandpiper SPB20 AODD Pump comes with a variety of features and benefits that enhance its performance in industrial applications. Amongst the features and benefits are:

  • Multiple material options:
    Aluminum, Cast Iron, Stainless Steel and Polypropylene.
  • Thick, robust wetted chambers:
    Enhancing resistance against abrasive materials.
  • Top suction/bottom discharge:
    For an easy passage of settling solids.
  • All Bolted Construction:
    For long-term and leak-free performance.
  • ESADS+ Air Distribution System:
    For enhanced reliability and speedy serviceability.
  • Best-in-class efficiency:
    Lowest air consumption in its class.
  • Non-Metallic Additional Features:

    • Only 58 lbs (27 kg):
      For easy mobility and worker safety.
    • Clean-Out Caps:
      For fast, simple maintenance or inspection without pump disassembly.
    • Ergonomic Handles:
      Can be positioned either horizontally or vertically.
    • Fluid Connection Options:
      Either FNPT or ANSI/DIN Flange.

Specification Metallic Non-Metallic
Models

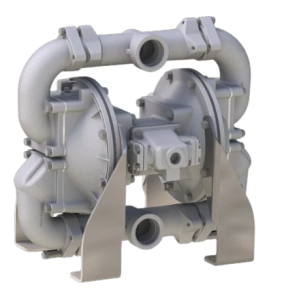

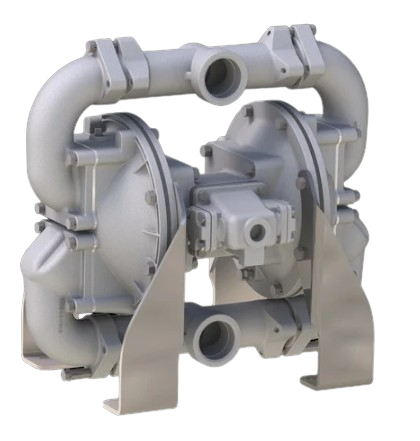

Sandpiper SPB20 Metallic AODD Pump (Heavy Duty)

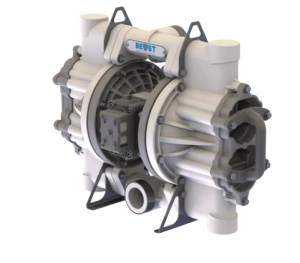

Sandpiper SPB20 Non-Metallic AODD Pump (Heavy Duty)
Port Size 2″ NPT 2″ NM NPT (Internal)

2″ BSP (Tapered)

2″ ANSI

2″ DIN Flange

Capacity 0 to 208 gpm (787 lpm) 0 to 107 gpm (644 lpm)
Air Distribution Valve No-lube, no-stall design No-lube, no-stall design
Solids-Handling Up to 2″ (50 mm) Up to 1.8″ (46 mm)
Heads Up To 125 psi or 289 ft. of water (8.6 bar or 88 meters) 100 psi or 231 ft. of water (7 bar or 70 meters)
Displacement/Stroke 0.47 liters (1.8 liters) 0,50 liters (1.9 liters)
Max Operating Pressure 125 psi (8.6 bar) 100 psi (7 bar)
Shipping Weight

Aluminum:
89 lbs (39 kg)

Cast Iron:
168 lbs (76 kg)

Stainless Steel:
160 lbs (73 kg)

Pump:
58 lbs (27 kg)

Shipping:
70 lbs (32 kg)


SPB20 Metallic Pump Service Manual


SPB20 Metallic Pump Data Sheet


SPB20 Non-Metallic Pump Service Manual


SPB20 Non-Metallic Pump Data Sheet


Need Help Selecting the Sandpiper SPB20?


Not sure which Sandpiper SPB20 configuration is suitable for your application?
ABS Engineering can help you check the right construction, pump material and operating requirements.
