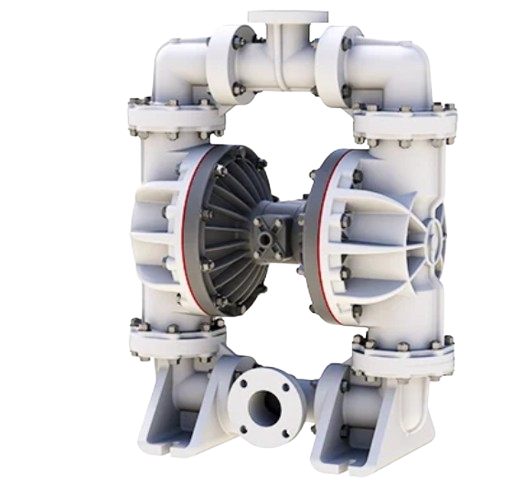

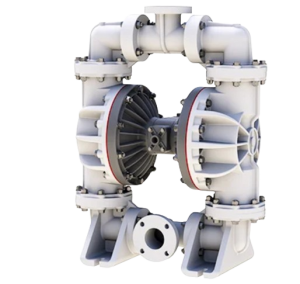

Sandpiper S30 Non-Metallic AODD Pump
Sandpiper’s Non-Metallic AODD Pump, Standard Duty AODD Pump, the S30
Sandpiper’s Standard Duty AODD Pump, the S30 is a non-metallic AODD Pump and part of the Sandpiper’s Evolution Portfolio becoming one of the best 3″ non-metallic AODD Pump in the world for bulk transfer applications. Sandpiper’s unique combination of best-in-class max flow rates and lowest air consumption makes them the most efficient and economical bulk transfer pumps. This pump’s materials of constructions come in options including; PTFE, Polypropylene, PVDF, Conductive Polypropylene, Conductive PVDF and Nylon with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.
Sandpiper’s Standard Duty AODD Pump, the S30, comes with a highlighted set of features that showcases the functionality of the pump;
- Available in corrosion-resistant polypropylene or PVDF
- Class-leading maximum flow rate and efficiency
- Bolted construction with stainless steel fasteners.
-
Serviceability:
The air distribution system (ADS) is one of the most frequently serviced parts of any AODD Pump. Only Sandpiper’s ESADS+ feature allows access to the complete ADS without removing the pump from service. Repair or clean in five minutes (versus 55 minutes for competitors). -
Simplicity:
Sandpiper’s original ADS is fully interchangeable, repairable and inline-serviceable. Other manufacturers frequently change ADS designs, creating issues with interchangeability, obsolete inventory and increased cost of ownership.
| Port Size | 3″ ANSI Flange or 80 mm DIN Flange |
| Capacity | 0 to 280 gpm (1,060 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to ¾” (19 mm) |
| Heads Up To | 100 psi or 231 ft. of water (7 bar or 70 meters) |
| Displacement/Stroke | 1.0 gallon (3.8 liters) |
| Max Operating Pressure | 100 psi (7 bar) |
| Shipping Weight |
Polypropylene: PVDF: |
Need Help Selecting the Sandpiper S30?
Not sure if the Sandpiper S30 is suitable for your application?
ABS Engineering can help you check the right pump size, material and operating requirements.
