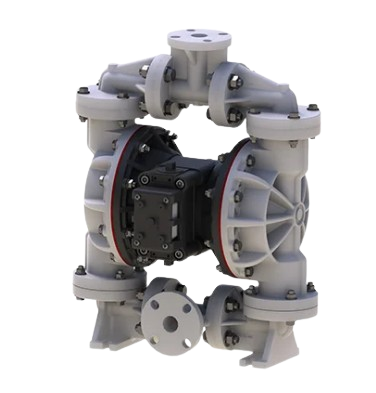

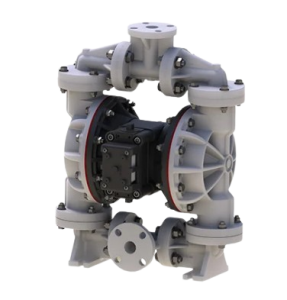

Sandpiper S1F Non-Metallic AODD Pump
Sandpiper’s Non-Metallic AODD Pump, Standard Duty AODD Pump, the S1F
Sandpiper’s Standard Duty AODD Pump, the S1F, is a non-metallic AODD Pump that provides incredible lightweight portability with the versatility to handle both corrosive fluids and small suspended solids. This AODD Pump has proven the test of time as a trusted, class-leading air-operated double-diaphragm (AODD) pump for a variety of markets and applications. The Sandpiper’s 1″ S1F Non-Metallic AODD Pump offers air-side interchangeability with Sandpiper’s S15, S20 and S30 pumps for reduced inventory costs. The durable, bolted construction of the S1F is superior to the clamped-band construction pump, providing exceptional leak-free performance. This pump is designed to be driven by compressed air or nitrogen. Materials of construction options include; Polypropylene, PVDF and Conductive PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.
Sandpiper’s S1F Non-Metallic AODD Pump comes with highlighted features that better showcases the functionality of the AODD Pump in its industrial applications;
-
Serviceability:
The air distribution system (ADS) is one of the most frequently serviced parts of any AODD pump. Only Sandpiper’s ESADS+ feature allows access to the complete ADS without removing the pump from service. Repair or clean in five minutes (versus 55 minutes for competitors). -
Trusted design:
Sandpiper’s original ADS is fully interchangeable, repairable, and inline-serviceable. Other manufacturers frequently change ADS designs, creating issues with interchangeability, obsolete inventory and increased cost of ownership.
| Port Size |
1″ ANSI Flange PN10 25 mm DIN Flange |
| Capacity | 0 to 53 gpm (200 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to ¼” (6 mm) |
| Heads Up To | 100 psi or 231 ft. of water (7 bar or 70 meters) |
| Displacement/Stroke | .19 gallons (.72 liters) |
| Max Operating Pressure | 100 psi (7 bar) |
| Shipping Weight |
Polypropylene: PVDF: |
