Rhino Series CI Body Motors | CG
Rhino Series CI Body Motors

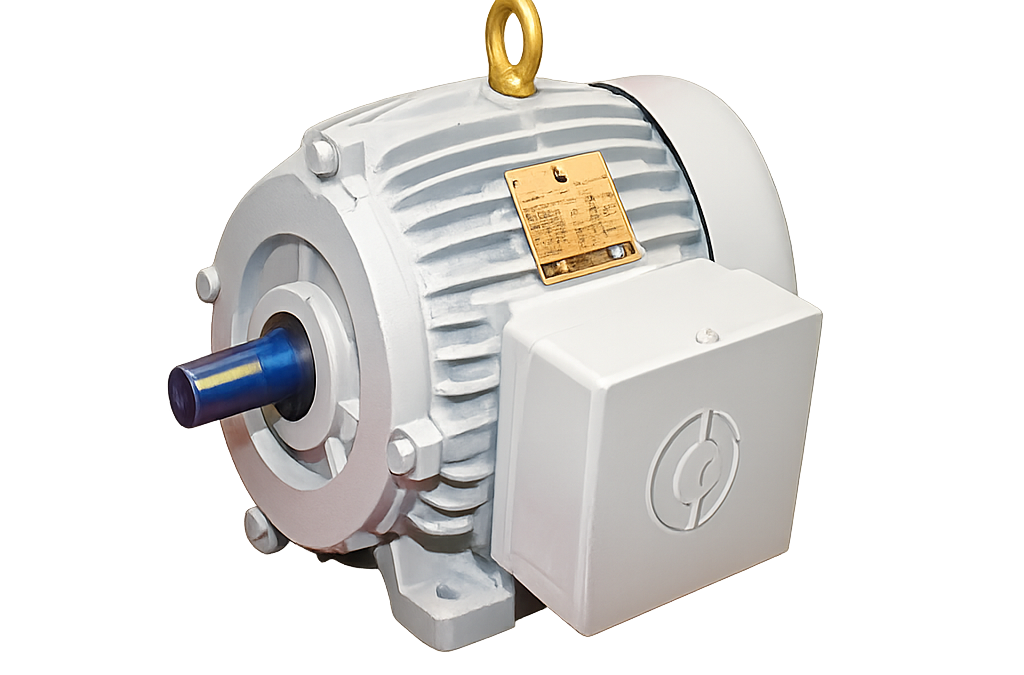

Rhino Series CI Body Motors are designed for reliable and heavy duty performance in applications that require stronger torque, dependable operation and long service life. Based on CG’s FHP motor positioning, this series is built around CI body construction and is suitable for a wide range of industrial, commercial and agricultural uses.
This motor series is positioned with lower temperature rise, long life and high performance characteristics. It also features higher power factors, enamelled copper wire designs and wide voltage suitability, making it a practical option for users who need stable and efficient operation across different working conditions.
Key Features and Benefits
- CI body motor construction for robust and durable performance
- Lower temperature rise for improved operating reliability
- Long life and high performance motor design
- Higher power factors for more efficient operation
- Enamelled copper wire designs
- Higher torque levels for demanding applications
- Wide voltage suitability for broader application flexibility
- Sealed ball bearings for dependable running performance
- Class F insulation
- Continuous duty designs
- Efficient CSCR design on selected models
- Easy reversibility
Technical Specifications
- Motor series: Rhino Series
- Motor type: Single Phase FHP Motor
- Voltage: 220 Volts
- Body construction: CI Body
- Frame type: IEC Frame
- Enclosure: TEFC
- Pole options: 2 pole and 4 pole
- Capacitor design: PSC and CSCR depending on model
- Power range: 0.25 HP to 3 HP
- Output range: 180 W to 2250 W
- Frame sizes listed in catalogue: 63 to 100L
- Mounting style shown in price list: Foot mounted
Catalogue and price list references show Rhino Series under single phase 220 Volt CI body IEC frame FHP motors, with TEFC construction and model variations covering both general purpose and pumps, blowers and gear box related applications. Specifications may vary by model and rating.
Applications
Rhino Series CI Body Motors are suitable for a wide range of equipment where dependable performance and stronger torque are required. Typical applications include:
- Exhaust fans
- Blower applications
- Cooler units
- Chiller units
- Condenser units
- Roof extracting units
- Pumps
- Gear boxes
- Chaff cutters
- Pulverizers
- Rice hullers
- Garage compressors
- Threshers
Why Choose Rhino Series CI Body Motors
Rhino Series CI Body Motors are a suitable choice for users who need a stronger and more durable motor for practical day to day use. With CI body construction, lower temperature rise, higher torque levels and TEFC design, this series is better aligned with demanding applications where stable performance and long service life are important. :
Frequently Asked Questions
What are Rhino Series CI Body Motors used for?
Rhino Series CI Body Motors are used in applications such as exhaust fans, blowers, cooler units, chiller units, condenser units, roof extracting units, pumps, gear boxes and selected agricultural or machinery equipment that require dependable torque and reliable operation.
What are the key advantages of Rhino Series CI Body Motors?
The main advantages include CI body construction, lower temperature rise, long life, high performance, higher power factors, higher torque levels, sealed ball bearings, class F insulation and wide voltage suitability.
Are Rhino Series motors available in different ratings?
Yes. The Rhino Series price list shows ratings from 0.25 HP to 3 HP, with outputs from 180 W to 2250 W, depending on model configuration.
What enclosure and capacitor types are used in Rhino Series motors?
The listed Rhino Series models are shown with TEFC enclosure and are available in PSC or CSCR configurations depending on the application and motor rating.
Are Rhino Series CI Body Motors suitable for demanding applications?
Yes. The series is positioned for applications that require stronger operating reliability and higher torque, making it suitable for both general purpose and more rugged usage conditions.
Enquiry
Looking for Rhino Series CI Body Motors for industrial, commercial or agricultural applications? Contact us for product selection support, technical guidance and quotation assistance based on your application requirement.
