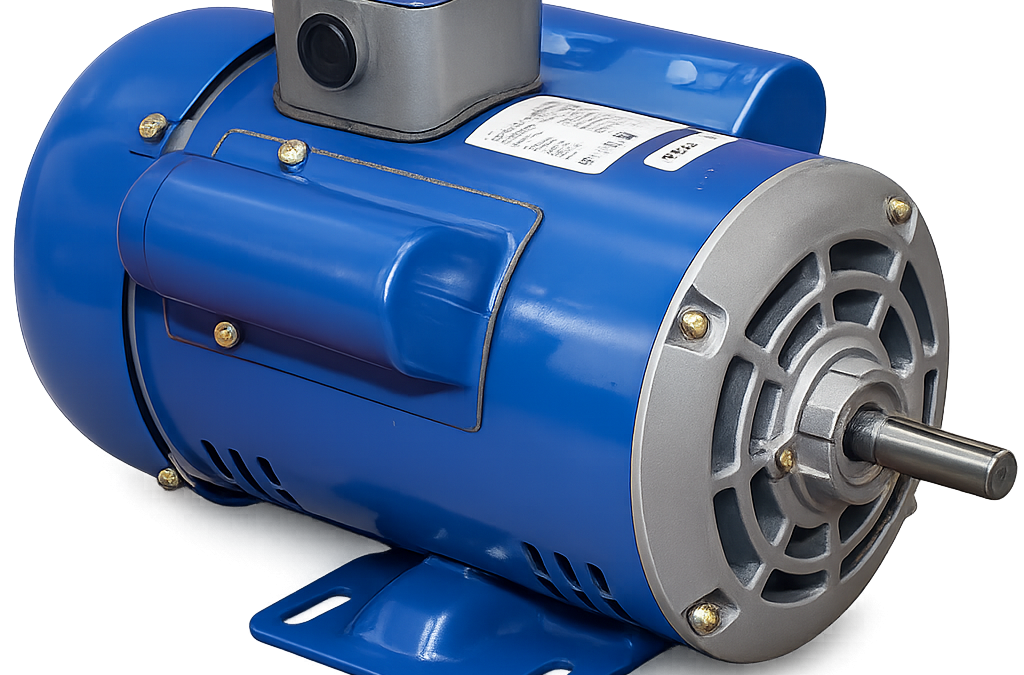

NEMA 56 Frame Motors

NEMA 56 Frame Motors are designed for reliable performance across a wide range of industrial, commercial and OEM applications. With their compact construction, flexible mounting options and dependable operating characteristics, these motors are widely used in equipment where standard NEMA frame compatibility and efficient power transmission are important.

Suitable for general industrial use, NEMA 56 frame motors can be configured to support different application requirements, including compact machinery, air handling systems, pumps, conveyors and other equipment that requires durable and consistent motor performance. Depending on the operating environment and duty requirement, different enclosure and mounting arrangements may be available.

With practical installation flexibility and strong application suitability, NEMA 56 Frame Motors offer an effective solution for machine builders, OEM requirements and replacement motor needs where standardisation, performance and ease of integration matter.

Key Features and Benefits

• Standard NEMA 56 frame configuration for broad equipment compatibility
• Suitable for industrial, commercial and OEM applications
• Compact motor design for easier integration into machinery
• Available in different mounting configurations to suit installation needs
• Suitable for use in air handling, pumps, conveyors and other equipment applications
• Designed for dependable continuous operation
• Configuration flexibility for different enclosure and performance requirements
• Practical choice for both new installations and replacement motor applications

Technical Overview

• Motor frame: NEMA 56
• Common frame variant: NEMA 56C
• Application type: Industrial and OEM electric motor
• Typical configuration range may include single phase or three phase options
• Mounting options may include C-face, foot mounted, or C-face with base depending on model
• Enclosure options may vary by application and motor design requirement

NEMA 56 frame motors are commonly selected where users require a standard frame motor that is compact, easy to mount and suitable for a broad range of mechanical drive applications. Depending on the model, these motors may also be available in premium efficiency or application-specific configurations.

Mounting and Configuration Options

One of the key strengths of NEMA 56 frame motors is their installation flexibility. Depending on the model and application, common mounting arrangements may include foot mounting, C-face mounting, C-face with removable feet, C-face with rigid base, or configurations without feet for direct equipment integration.

This makes NEMA 56 motors suitable for machine builders and end users who need easier compatibility with pumps, fans, conveyors, HVAC systems and other industrial equipment. Configuration flexibility also helps support replacement projects where frame and mounting accuracy are important.

Applications

NEMA 56 Frame Motors are commonly used across a wide range of industrial and commercial applications, including:

• Air handling systems
• HVAC equipment
• Pumps
• Packaging and conveyor systems
• Compact machinery
• Automated production equipment
• OEM machine assemblies
• General industrial motor replacement applications

Frequently Asked Questions

What are NEMA 56 Frame Motors used for?

NEMA 56 Frame Motors are commonly used in industrial and commercial equipment such as pumps, air handling systems, HVAC units, conveyors, compact machinery and OEM machine assemblies.

What is the difference between NEMA 56 and NEMA 56C?

NEMA 56 refers to the standard frame size, while NEMA 56C commonly refers to a C-face mounting configuration used for direct equipment mounting. The correct option depends on the installation and application requirement.

Are NEMA 56 Frame Motors available in different mounting options?

Yes, depending on the model, NEMA 56 frame motors may be available in foot mounted, C-face, C-face with base, or other mounting configurations to suit different equipment needs.

Can NEMA 56 Frame Motors be used for OEM applications?

Yes, these motors are commonly used in OEM equipment due to their standard frame size, compact structure and flexible mounting compatibility.

Are there different enclosure options for NEMA 56 motors?

Depending on the motor design and intended operating environment, NEMA 56 motors may be available in different enclosure types such as TENV, TEFC, or other application-specific configurations.

Can NEMA 56 Frame Motors be used as replacement motors?

Yes, NEMA 56 frame motors are often selected for replacement projects where matching frame size, mounting style and application suitability are important.

Enquiry

Looking for a reliable NEMA 56 Frame Motor for industrial, commercial, or OEM use? Contact us for motor selection support, technical guidance and quotation assistance based on your application and mounting requirements.
