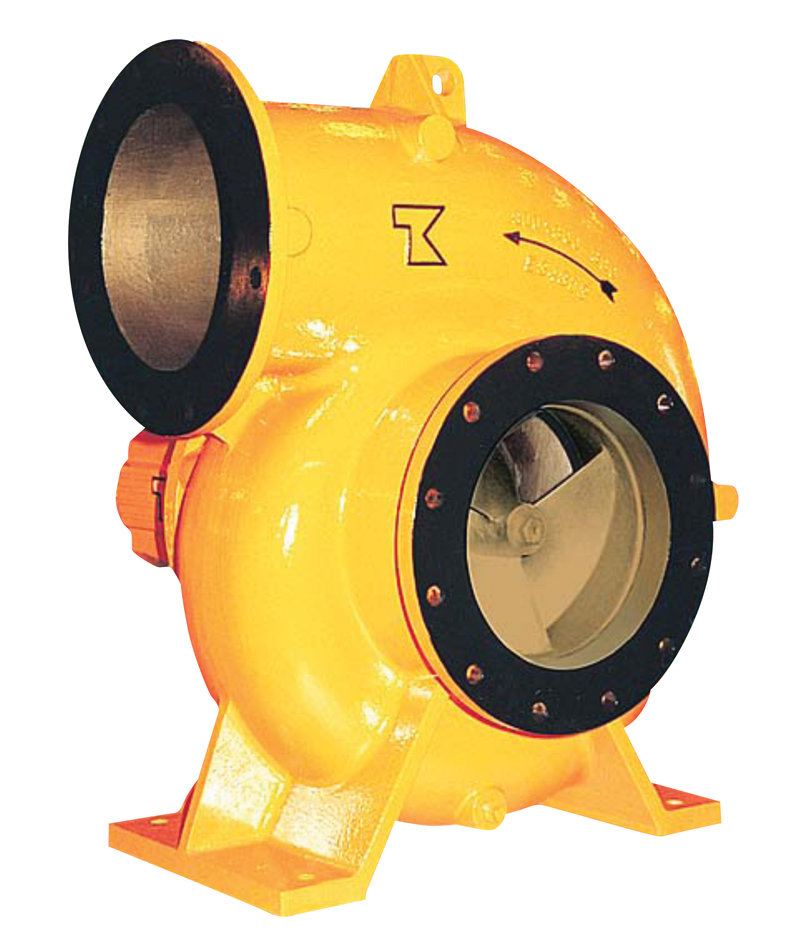

MVE End Suction, Overhung Industrial Process Pump
MVE End Suction, Overhung Industrial Process Pump
| Brand: | TKL |
|---|---|
| Description: | The Flowserve TKL™ MVE is a mixed-flow, single-stage volute pump designed to deliver high-volume flow at low to medium heads. Its robust construction and efficient design make it ideal for various industrial, municipal, and agricultural services, including water treatment, flood control, and irrigation systems. |
The MVE mixed flow, single stage volute pump is designed to deliver high volume flow at low to medium heads. It provides reliable performance in numerous industrial, municipal and agriculture services.
MVE Process Pump Applications
Agriculture, Dewatering and Water Supply (mining), Flood Control, Water Treatment, Sewage Collection and Treatment, Shipping, Waste Processing, Ground Water Development and Irrigation
Single volute, symmetrical casing features integral suction and discharge flanges for high strength. End suction and side discharge standard; top discharge optional.
Mixed Flow, Enclosed Impeller is mechanically balanced to prevent vibration.
Heavy-Duty angular contact radial and thrust bearings are standard.
Back pull-out design permits removal without disturbing piping.
Seal chamber accommodates packing and multiple mechanical seal types.
Operating Parameters
- Flows to 2700 m3/h (11 890 gpm)
- Heads to 15 m (50 ft)
- Pressures to 7 bar (100 psi)
- Temperatures to 100°C (212°F)
There is no literature for this product.
Looking for a reliable pump solution for high-volume, low-head applications? The Flowserve TKL™ MVE offers robust performance and easy maintenance. Contact us to configure the optimal MVE pump for your specific process requirements.
