Flowserve FRBHJ Overhung Vertical Lineshaft Sump Pump for pulp wastewater and industrial slurry systems

Introduction Features Literature

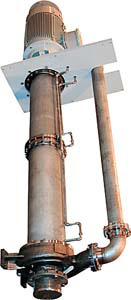

FRBHJ OverhungFRBHJ Overhung, Vertical Lineshaft Sump Pump

Brand: Worthington
Description:

The Flowserve FRBHJ is a rugged overhung vertical lineshaft sump pump engineered for high-flow and difficult-to-handle fluids in pulp and paper wastewater treatment and slurry systems. With a semi-open impeller, abrasion-resistant materials, and options for deep wet pit installation, the FRBHJ is designed to operate reliably in fibrous slurries and thick industrial fluids. It offers excellent uptime in OEM and auxiliary system environments where durability and clog resistance are critical.

The FRBHJ vertical lineshaft sump pump is suitable for to handle the thick, pulpy mixtures found in the pulp and paper industry, as well as a broad range of process liquids in many other industries.

FRBHJ Overhung, Vertical Lineshaft Sump Pump Applications

Wet Pit, Waste Treatment, Waste Stock, Condensate, Flash Tanks, Concentrator, Cellulose Fiber Slurries, Pulp and Paper

  • Industries:
    OEM, Miscellaneous Services, Auxiliary, Wastewater Collection and Treatment, Waste Processing, Slurry Processing, Water Treatment

Steep Head-Capacity Curve minimizes changes in flow regardless of changes in system head and prevents overloading the driver.

Semi-Open, Full Vane Impeller with back pump-out vanes prevents clogging in thick, pulpy applications and reduces axial unbalance and stuffing box pressure.

Cast Iron Lower Bearing Housing is fitted with a rubber or urethane fluted bearing. The bearing is contained in a rigid stainless steel shell and lubricated from an external clear liquid source.

Stuffing Box is sized for five rings of packing with multiple lantern ring positions. Single, double, tandem, and split mechanical sealing options also available.

Features:

  • Extra heavy-duty alloy steel shaft
  • Direct coupled or V-belt driven
  • Choice of materials
    • Cast iron
    • 316 SS
    • 316L SS
    • 317L SS
    • CD4MCu
    • CA6NM
    • Worthite
  • Operating parameters
    • Flows to 2700 m3/h (12 000 gpm)
    • Heads to 100 m (325 ft)
    • Temperatures to 150°C (300°F)
    • Speeds to 1780 rpm

Features:

  • Extra heavy-duty alloy steel shaft
  • Direct coupled or V-belt driven
  • Choice of materials
    • Cast iron
    • 316 SS
    • 316L SS
    • 317L SS
    • CD4MCu
    • CA6NM
    • Worthite
  • Operating parameters
    • Flows to 2700 m3/h (12 000 gpm)
    • Heads to 100 m (325 ft)
    • Temperatures to 150°C (300°F)
    • Speeds to 1780 rpm

FRBH Worthington® Heavy-Duty Paper Stock and Process Pump Bulletin
FRBH, FRBHX & FRBHS Centrifugal Paper Stock and Process Pumps User Instructions
FRBHJC Vertical Cantilever Centrifugal Pumps User Instructions
Need a sump pump that handles thick slurries without clogging? The FRBHJ is built for it. Talk to us to explore configuration options and material compatibility for your application
