Pump Type
Max viscosity: over 10000 cSt
Max system pressure: 16 bar
Temperature range: from -50 °C to +200 °C
Max viscosity: 10000 cSt
Temperature range: from -22 °F (-30°C) to +194 °F (+90°C)
VANEMAG: Max viscosity: 10000 cSt ,Max system pressure: 50 bar (standard), 150 bar (HP Version)
V IN LINE: Max viscosity: 10000 cSt, Max system pressure: 50 bar (standard), 150 bar (HP Version)
V MODULAR: Max viscosity: 10000 cSt, Max system pressure: 50 bar (standard), 150 bar (HP Version)
CV MAG-M: Max viscosity: 10000 cSt, Max system pressure: 50 bar (standard), 150 bar (HP Version)
Max viscosity: 200 cSt
Max system pressure: 16 bar
Temperature range: from -22 °F (-30°C) to +194 °F (+100°C)
TSP MAG-P: Max viscosity: 200cSt, Max system pressure: 6 bar, Temperature range: from -22°F (-30 °C) to +194°F (+90 °C)
T MAG-P: Max viscosity: 200cSt, Max system pressure: 5 bar, Temperature range: from -22 °F(-30 °C) to +194 °F (+90 °C)
T MAG-M: Max viscosity: 200cSt, Max system pressure: 50 bar (standard), 150 bar(HP Version)
CT MAG-M: Max viscosity: 200cSt, Max system pressure: 50 bar (standard), 150 bar(HP Version)
T MAG-M: Max viscosity: 200cSt, Max system pressure: 50 bar (standard), 150 bar(HP Version)
T ECO MAG-M: Max viscosity: 200cSt, Max system pressure: 16 bar
C MAG-P: Viscosity: 200 cSt, Capacity: up to 140 mc/h

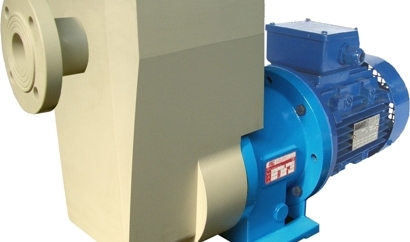

CSP MAG-P: Max viscosity: 200 cSt , Max system pressure: 5 bar
CM MAG-P: Max viscosity 200cSt, Max system pressure 6 bar
CV MAG-P: Max viscosity: 200 cSt, Flow up: to 140 mc/h
CMV MAG-P: Max viscosity: 200cSt, Max system pressure: 5 bar
CM MAG-M: Max viscosity 200 cSt, Max system pressure: 50 bar (standard),150 bar (HP Version)
CN MAG-MS API: Max viscosity: 200cSt, Max system pressure: 100 bar ( 600 lbs) standard
CN MAG-M: Maximum capacity up to 4000 mc/h, Differential head up to 155 m.
CN MAG-M API: Maximum capacity up to 4000 mc/h, differential head up to 220 m.
CNV MAG-M: Max viscosity: 200 cSt , Max system pressure: 16 bar (standard),150 bar (HP Version)
CR MAG-M API: Maximum capacity: up to 4000 mc/h, differential head up to 220 m.
CN MAG-MV: Max viscosity: 200 cSt, Max system pressure: 16bar (standard), 150bar (HP Version)
