Becker U5- The Improved Vacuum Pump
BECKER U5
High-performance vacuum pump
Specifically designed for the food packaging industry.

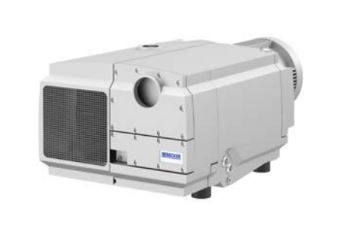

U4
Time-proven and robust workhorse for continuous smooth processes
- Robust vacuum pump for use in the pump stand or the central vacuum system
- Good evacuation times compared to industry standards
- Compact structural dimensions compared to industry standards
- Optimised energy efficiency: ideal performance at low power consumption

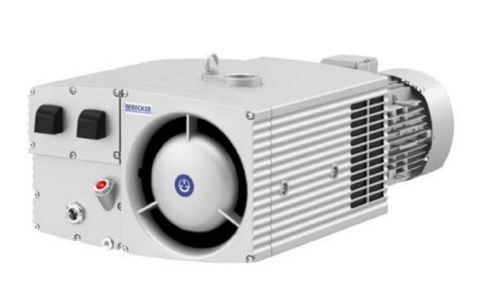

U5 (NEW & IMPROVE! )
Quick and efficient way to package meat and sausages, cheese and dairy products or pastries in vacuum or protective atmosphere.
- Shortest evacuation times compared to industry standards
- Low installed motor capacity in direct comparison
- Highly efficient oil separation for extended maintenance intervals
- Compact structural dimensions: minimal footprint, easy integration into packaging machines without expensive special-purpose machinery
- Ideal for sensitive fresh products thanks to minimal heat emission
U5 O2-Pack (NEW & IMPROVE )
The safe and simple way to package red meat under O2 atmosphere
- Lifelong oil lubrication, no oil changes required
- Compact design, same overall length as the U5 series (series is not extended by an additional separation)
- New highly efficient 3-stage oil separation with minimum footprint
- Plus the same advantages as the other models of the U5 series
Booster/ Pump Stand
The compact version for partial centralisation
- Efficient solution for both booster and pump stand applications
- Significant increase in evacuation speed compared to vacuum pumps which are integrated into packaging machines
- Various customisation options (frequency control, monitoring sensor system, signal output to the packaging machine)
- Booster pump with integrated bypass as a backup for packaging processes with quick cycling times for high operational reliability and availability
- Mounted on a stainless steel frame for highest hygienic standards in all areas
Central Vacuum System
Improving system efficiency
- Consulting, commissioning, maintenance and repair from one single source
- Adaptation of the operational vacuum supply based on actual operational requirements
- Optimisation of the overall energy balance
- Centralisation in one location prevents the development of heat within the production hall saving energy costs for air-conditioning and reducing noise emission
- Dry compressing vacuum pumps as an alternative to compression principles based on oil lubrication
- Medium, rough, forming and high vacuum for even more efficient evacuation times and more economical operation of your centralised facility
- Control electronics compatible with all systems: allows simple adaptation, expansion and integration to various customer-specific requirements
Technical Data
|
U 5.70 |
U 5.100 | U 5.165 | U 5.200 |
U 5.300 |
||||||||||
|
Hz |
50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | ||||
|
m³/h |
70 |
84 | 100 | 120 | 165 | 198 | 200 | 240 | 300 |
360 |
||||
| mbar abs. | 0.1/0.5 | 0.1/0.5 | 0.1/0.5 | 0.1/0.5 | 0.1/0.5 | 0.1/0.5 | 0.1/0.5 | 0.1/0.5 | 0.1/0.5 |
0.1/0.5 |
||||
|
U 5.70 O2-PACK |
U 5.100 O2-PACK | U 5.165 O2-PACK | U 5.200 O2-PACK |
U 5.300 O2-PACK |
||||||||||
|
Hz |
50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | ||||
|
m³/h |
70 |
84 | 100 | 120 | 165 | 198 | 200 | 240 | 300 |
360 |
||||
| mbar abs. | 0.5/1.0 | 0.5/1.0 | 0.5/1.0 | 0.5/1.0 | 0.5/1.0 | 0.5/1.0 | 0.5/1.0 | 0.5/1.0 | 0.5/1.0 |
0.5/1.0 |
||||
|
|
U4.400 | U4.630 | ||
|
Hz |
50 | 60 | 50 | 60 |
| m³/h | 435 | 508 | 624 |
733 |
| mbar abs. | 0.5/3.0 | 0.5/3.0 | 0.5/3.0 |
0.5/3.0 |
|
|
RBP/500 | RBP/1000 | RBP/2000 | |||||
|
Hz |
50 |
60 | 50 | 60 | 50 |
60 |
||
|
m³/h |
500 | 600 | 1000 | 1200 | 2000 |
2400 |
||
| ?p mbar (max.) | 60 | 60 | 60 | 60 | 60 |
60 |
||
