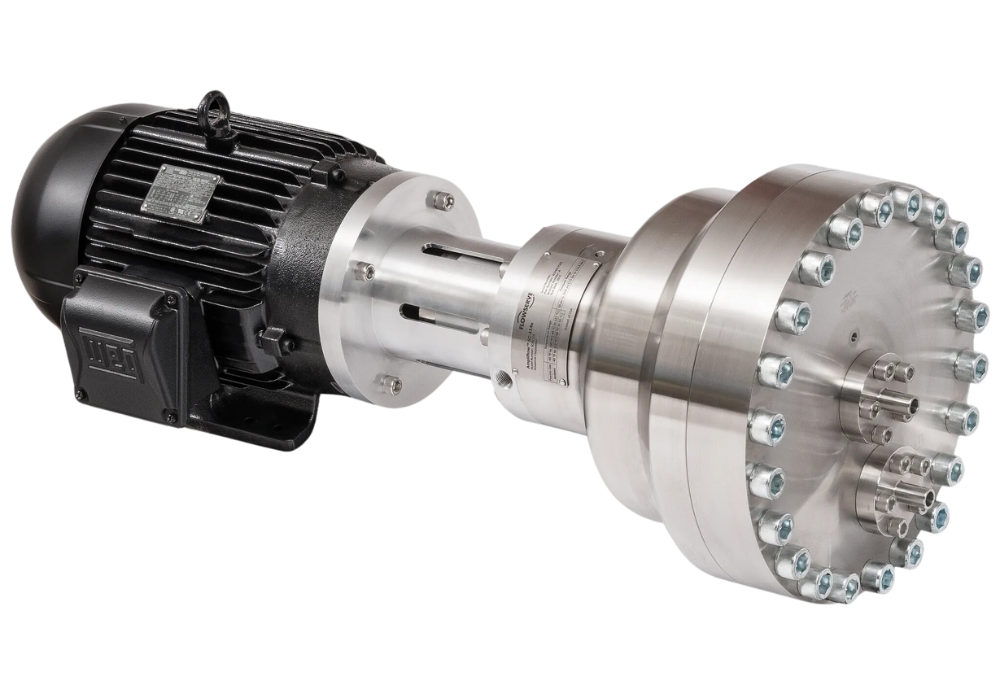

Ampliflow G-Boost

The Ampliflow G-Boost provides a constant supply of clean seal gas to compressor gas seals, reducing contamination and equipment downtime. The Ampliflow G-Boost, powered by an electric motor, enhances operating reliability when the compressor’s differential pressure is low and the available seal gas supply is insufficient.

High-Performance Ampliflow G-Boost Compressor Seals and Systems Application

Benefit

1. The magnetically driven, hermetically sealed design stops process gas from leaking out of the unit along the shaft.
2. Moving in a positive way. The Scroll Compressor uses direct mechanical force to keep the flow going no matter what the conditions are.
3. Because it can handle differential pressure, the unit can be put ahead of the dry gas seal support system panel.
4. This is an advantage that other units don’t have because they have to be put after all the dry gas seal system parts.
5. The modular design makes upkeep easy and quick to do on-site.

Specification

Pressure to : 550 bar (8000 psi)

Temperature : to 204°C (400°F)

NEC Class 1, Div. 2, Group BCD

Size Range

• Dimensions:  996 x 385 x 410 mm  (39.20 x 15.16 x 16.20 inches)

Pressure Class Range: 114 bar (1650 psi)

Materials

• Magnetic Coupling: Titanium
• Housing: Stainless steel

Industries

• Oil & Gas
  • Midstream Transportation
  • Downstream Processing

Ampliflow G-Boost Seal Gas Booster Flyer

Enhance the efficiency of your operations with Ampliflow G-Boost. Contact us today to learn more about our advanced Compressor Seals and Systems!
