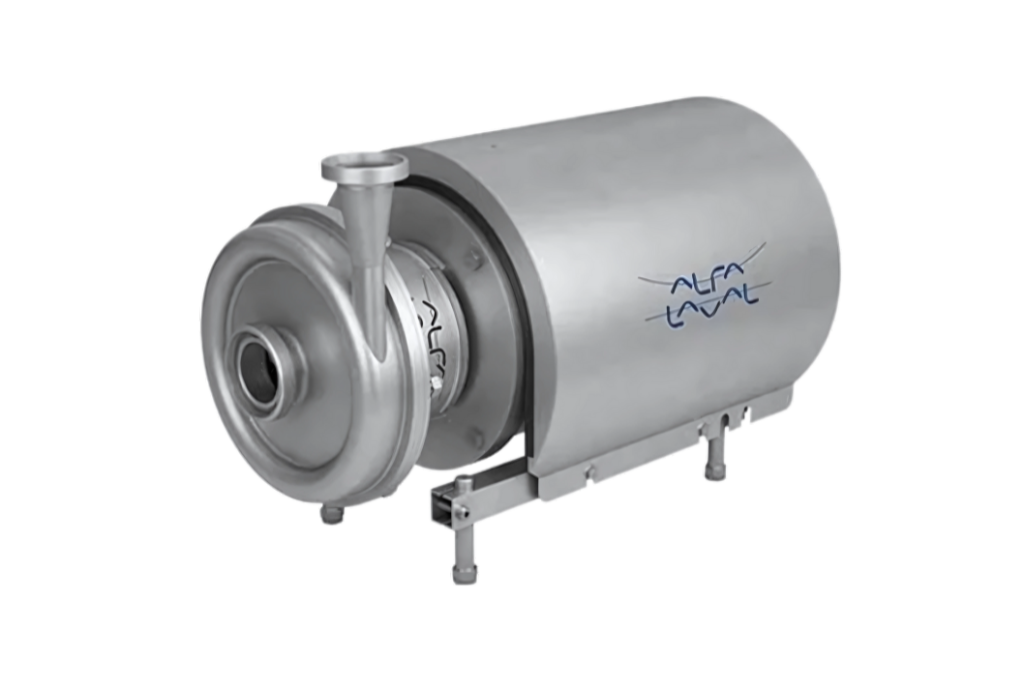

Alfa Laval LKHI

Designed to meet the hygienic requirements of the dairy, food and beverage and personal care industries, Alfa Laval’s LKHI centrifugal pumps increase process productivity while providing high efficiency and gentle product handling with inlet pressures up to 16 bar.

Related Industries: Processed Foods, High-Acid Foods, Dairy, Beverages, Brewery, Home & Personal Care, Pharmaceutical, Biotech, Chemical

Models:

• Alfa Laval LKH Standard
• Alfa Laval LKH Prime
• Alfa Laval LKH UltraPure
• Alfa Laval LKH Multi-Stage
• Alfa Laval LKH High Pressure
• Alfa Laval LKH Evap
• Alfa Laval LKHex
• Alfa Laval LKHI
• Alfa Laval LKHPF
• Alfa Laval LKHSP

A premium performer

As Alfa Laval’s premium range of centrifugal pumps, the LKH centrifugal pumps are distinguished by high efficiency, low energy consumption, several options, and a wide range of flow rates and pressures.

High efficiency

A precision-engineered pump and motor provide high efficiency and gentle product treatment. The robust design and tight tolerances together with the advanced impeller design minimize recirculation and ensure the efficient transfer of energy.

Optimal pump design

The impeller design ensures efficient and gentle handling of the product as it moves through the pump. This ensures product integrity and minimizes NPSHr (Net Positive Suction Head required).

Low energy consumption

Making pump energy use more efficient presents huge potential for energy savings. The optimized pump design and premium motor of Alfa Laval LKH centrifugal pumps often deliver greater energy efficiency than similar premium pumps and 30% or more compared to similar mid-range pumps.

Cleanability and hygienic design

Controlled compression gaskets, crevice-free internals, an external mechanical seal, and an optimized impeller with balancing holes ensure thorough cleaning during a time-effective CIP cycle. Perfectly aligned components and O-ring joints safeguard hygiene.

External shaft seal – hygienic and serviceable

By positioning the shaft seal outside the pump, difficult-to-clean components do not contact the product. The front-loading design allows quick replacement, increasing uptime and lowering maintenance costs. Interchangeable single, flushed, and double seals simplify spare-parts inventory.

Different models for different duties

Several different LKH pump models are available to meet varied duties:

	LKH UltraPure for biotech and pharmaceutical applications
	LKHPF for high-pressure applications*
	LKH Multistage for high outlet pressures*
	LKHSP for self-priming applications*
	LKHex for explosive environments*
	LKH Evap – dedicated evaporator pump*

LKH pumps available in 13 sizes to handle capacities up to 500 m³/hour and pressures up to 190 H/m. Options include shaft seals, flushing arrangements, and elastomers.

Available sizes: –5, –10, –15, –20, –25, –35, –40, –45, –50, –60, –70, –80, –90

Unique impeller design

The semi-open impeller with a special vane design ensures low NPSHr (Net Positive Suction Head). This prevents cavitation and minimizes mechanical damage risk. Balance holes enhance circulation around the seal and reduce axial forces, extending seal and bearing life.

External shaft seal

The front-loading shaft seal, with spring and washers on the atmospheric side, makes maintenance fast and inexpensive. The balanced design resists seal opening during pressure shocks.

Optimised shaft seal

One seal fits 11 LKH models and all SolidC pumps. Interchangeable single or double flushed seals can be swapped in minutes, reducing inventory and downtime.

Compression couplings

The precision compression coupling secures the stub shaft to the motor shaft, simplifying setup, minimizing noise and vibration, and prolonging component life.

PD Sheet LKHI Centrifugal Pump for 16 bar Inlet Pressure – EN

Looking for a durable and efficient industrial centrifugal pump? Contact us to configure your ideal Alfa Laval LKHI pump.
