Alfa Laval 660 Series Fractional Valve for Biotech and Hygienic Flow Control

DescriptionFeaturesDetailsDocumentation

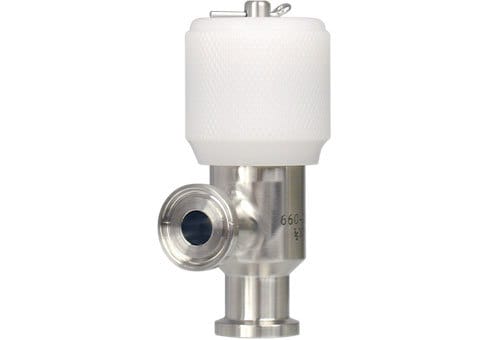

Alfa Laval 660 Series Fractional Valve for Biotech and Hygienic Flow Control660 Series Fractional Valves

Alfa Laval’s 660 Series fractional valves from ABS offer convenient manual operation in a fractional size valve. Alfa Laval designed these valves for applications which require a secure, sanitary or sterile environment.

Tri-Clamp® or hose barb outlets make this valve versatile for standard shutoff or sampling purposes.

Related Industries:

Processed Foods, Beverages, Brewery, Home & Personal Care, Chemical

660 Series Fractional Valves Features

  • Available with ½ inch Tri-Clamp x ¼ inch hose barb or ½ inch Tri-Clamp x ½ inch Tri-Clamp
  • Modified designs available from ABS to fit special applications
  • Standard handle is knurled polyethylene; bronze handle available for higher pressure/heat applications
  • Teflon plug with o-ring, optional electropolished ID

WORKING PRINCIPLE

The 660 valve is operated by means of a manual handle, which raises and lowers the PTFE valve plug.

DIMENSIONS

½ inch Tri-Clamp x ¼ inch hose barb pictured

MATERIALS

Product Wetted Steel Parts 316L
Other Steel Parts 304
Plug PTFE
O-ring SFY
Handle UHMV (standard)
Bronze (optional)

TECHNICAL DATA

Max Temperature (UHMW polyethylene handle) 150°F
Max Temperature (bronze handle) 250°F
Max Pressure (UHMW polyethylene handle) 150 psi
Max Pressure (nominal) 230 psi at 72°F
100 psi at 250°F
